Chapter 7 Web Programming

1 Introduction

1.1 The Basic Computing Stack

Software applications do not run in isolation; they exist within a layered computing hierarchy:

Basic Computing Stack

Hardware: The physical computational and storage machinery (Personal Computers, Laptops, Smartphones, Cloud Data Center Servers, CPUs, RAM, and SSDs).
Operating System (OS): System software (such as Microsoft Windows, macOS, and Linux) that acts as the intermediary between raw hardware and user-facing software, managing system memory, file access, hardware drivers, and security.
Applications: User-level programs executed on top of the OS (e.g., Google Chrome, Microsoft Office, VS Code, and custom business applications).

1.2 Data Organization & Hierarchical File Systems

Web servers and local development environments rely on hierarchical tree structures for organizing files and directories.

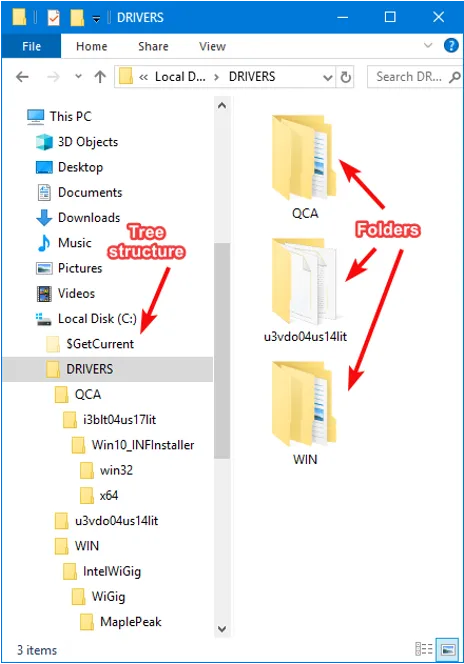

Folder Tree Structure

Root and Subdirectories: Folders branch downward from parent directories into child folders.
File Extensions: The suffix at the end of a filename (such as .html, .css, .js) signals file type and MIME association to both the Operating System and web browsers.

1.3 Development Environment: Why Text Editors / IDEs Matter

Standard word processors (e.g., Microsoft Word, PowerPoint) embed proprietary rich-text binary formatting and metadata that break web runtimes. Web development requires pure, unadorned plaintext editors.

Integrated Development Environment (IDE): Professional software that bundles source code editing with development productivity tooling:
- Syntax Highlighting: Color-codes language keywords, strings, tags, and attributes.
- IntelliSense & Autocompletion: Predicts tags, parameters, and variable names.
- Live Error Diagnostics: Highlights syntax flaws and unclosed tags in real-time.
- Integrated Terminal & Debugger: Runs and tests scripts directly within the workspace.
Visual Studio Code (VS Code): The industry standard development environment:
- VS Code for Web (https://vscode.dev): Lightweight, browser-based editor.
- VS Code Desktop Application: Full-featured local install with native file system access and plugin ecosystems.

2: HTML: The Content

2.1 The Anatomy of a Web Page

Every web document follows a standardized hierarchical markup structure defined by the World Wide Web Consortium (W3C):

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8">
    <title>IS300 Web Site</title>
  </head>
  <body>
    <h1>Welcome to Web Development</h1>
    <p>This is where visible page content lives.</p>
  </body>
</html>

Core Components Breakdown

<!DOCTYPE html>: Document type declaration instructing the browser engine to render the document using modern HTML5 standards mode.
<html>...</html>: The root container encapsulating all document code.
<head>...</head>: The metadata container housing machine-readable configuration:
- <title>: Specifies the document title shown in browser tabs and search engine results.
- <meta>: Sets character encoding (UTF-8), viewport scaling for mobile responsiveness, and SEO keywords.
- <link> & <style>: Imports external style sheets and internal CSS rules.
- <script>: Imports or embeds client-side JavaScript.
<body>...</body>: Contains all renderable content visible to the end user.

2.2 Essential HTML Elements & Semantic Markup

Emmet Abbreviations: Typing ! followed by Tab in VS Code automatically expands into a complete, standard HTML5 boilerplate.
Headings: <h1> down through <h6> define hierarchical typography in descending visual prominence and semantic importance.
Structural Containers:
- <p>: Paragraphs of running text.
- <div>: Generic division / block-level styling container.
- <ul> & <li>: Unordered (bulleted) lists and individual list items.

2.3 HTML Attributes & Resource Addressing (URLs)

Attributes provide configuration metadata to opening tags using standard name="value" key-value pairs.

<img src="/images/dog.jpg" alt="A golden retriever puppy" />
<a href="https://www.google.com" target="_blank">Search Google</a>

Uniform Resource Locators (URLs)

Absolute URLs: Provide full network paths including protocol and domain name (https://images.freeimages.com/example.jpg). Used for external third-party assets.
Relative URLs: Specify resource locations relative to the current site root or file directory (/images/dog.jpg, ../styles/main.css). Used for local assets.

2.4 User Input: Interactive Forms

HTML forms capture user input and submit payloads to processing server endpoints:

<form action="/action_page.php" id="form1">
  <label for="fname">First name:</label><br>
  <input type="text" id="fname" name="fname"><br>

  <label for="lname">Last name:</label><br>
  <input type="text" id="lname" name="lname"><br>

  <input type="submit" value="Submit Form">
</form>

id Attribute: Assigns a globally unique identifier to an element within the DOM (Document Object Model).
name Attribute: Identifies the form parameter key submitted in HTTP requests.

3 CSS: Styling & Layout Engineering

3.1 CSS Rule Anatomy

CSS applies formatting rules to targeted HTML elements using a declarative syntax:

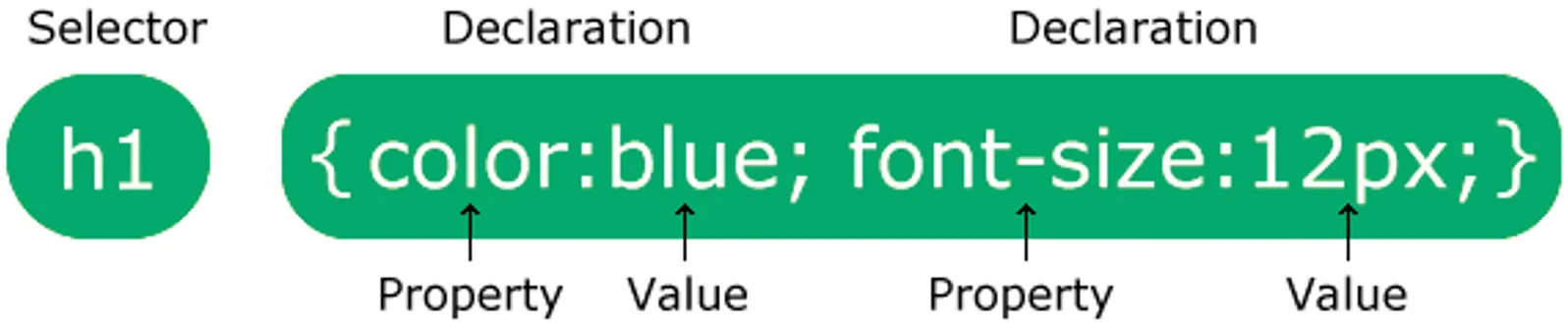

CSS Syntax Anatomy

A CSS rule consists of:

Selector: Specifies which HTML element(s) to style (e.g., h1).
Declaration Block: Enclosed in curly braces { ... }, containing one or more declarations separated by semicolons.
Property & Value: Each declaration pairs a CSS property name (e.g., color, font-size) with a valid measurement or keyword value (e.g., blue, 12px).

3.2 CSS Selectors & Combinators

Element Selector: Targets all matching HTML tag types:
```
p { color: red; }
```
ID Selector (#): Targets a single element with a matching unique id:
```
#para1 { color: red; }
```
Class Selector (.): Targets all elements sharing a specific reusable class attribute:
```
.center { text-align: center; color: red; }
```

Grouping & Combinator Selectors:

/* Grouping: Applies to h1, h2, and p */
h1, h2, p { text-align: center; color: red; }

/* Specificity Combinator: Applies only to p elements with class="center" */
p.center { text-align: center; color: red; }

3.3 Methods of Applying Styles

Inline Styles: Declared directly in element opening tags (<p style="color:red;">). Discouraged due to poor maintainability.
Internal Styles: Declared inside <style> blocks in the <head> tag. Useful for single-page isolated prototypes.
External Stylesheets (Industry Best Practice): Linked via <link rel="stylesheet" href="style.css">. Promotes strict separation of concerns, page caching, and site-wide reusability.

3.4 The CSS Box Model

Every renderable HTML element is interpreted by browser rendering engines as a modular rectangular box composed of four concentric layers:

CSS Box Model

Content: The inner rectangular area where text, images, and nested elements appear (sized by width and height).
Padding: The clear space immediately surrounding the content area, sitting inside any borders.
Border: The stroke or line wrapped around the padding and content.
Margin: The outermost transparent buffer space separating the element’s border from adjacent elements on the page.

Code Demonstration

h2 {
  background-color: lightgrey;
  width: 300px;
  border: 15px solid green;
  padding: 50px;
  margin: 20px;
}

3.5 Modern Layout Architecture: Flexbox

Modern web pages avoid rigid, table-based layouts in favor of flexible, multi-device layouts such as Flexbox and CSS Grid:

Page Layout Flexbox

Header: Global top-level branding and navigation banner.
Aside: Sidebar container for auxiliary navigation, secondary links, or metadata.
Article / Main: Primary thematic body content area enclosing dynamic components (such as image grids or article feeds).
Footer: Global bottom section for legal disclaimers, copyrights, and sitemaps.

4 JavaScript & Programming Fundamentals

4.1 Role of JavaScript in Modern Web Systems

JavaScript provides runtime client-side execution, handling:

User interface events (button clicks, form validations, keyboard events).
Dynamic DOM manipulation (modifying HTML content and CSS classes on the fly).
Asynchronous network requests (fetching data in the background via APIs without page reloads).

4.2 Programming Language Execution Models

Programming languages translate human-readable logic into machine-executable instructions through three primary execution paradigms:

Category	Execution Mechanism	Common Languages	Web Context
Interpreted / Scripting	Code is interpreted and executed dynamically line-by-line by a Virtual Machine engine.	JavaScript, Python, PHP	V8 Engine inside Chrome executes JS.
Compiled	Source code is converted ahead-of-time by a compiler into direct machine-code binaries.	C, C++, Rust	High-performance system utilities and game engines.
Hybrid / Bytecode	Source code compiles to intermediate bytecode, executed inside a language runtime / VM.	Java, C#, Kotlin	Enterprise backend business services.

4.3 Universal Programming Control Structures

Sequential Execution: Instructions execute in top-to-bottom order.
Branching (Conditionals): Evaluating boolean logic expressions (if (condition) { ... } else { ... }).
Loops (Iteration): Repeating execution blocks until conditions terminate (while, for).
Functions: Modular, reusable subroutines grouping related instruction sets together.

4.4 JavaScript Implementation Strategies

A. Inline Event Handlers

<button type="button" onclick="document.getElementById('demo').innerHTML = 'Hello World!'">
  Say Hello
</button>
<p id="demo"></p>

B. Internal `<script>` Block

<p id="demo"></p>
<script>
  document.getElementById("demo").innerHTML = "Hello World!";
</script>

C. Head Functions vs. Bottom-of-Body Scripts

<!DOCTYPE html>
<html>
<head>
  <script>
    // Functions defined in head are loaded in memory before DOM rendering
    function updateGreeting() {
      document.getElementById("demo").innerHTML = "Hello World!";
    }
  </script>
</head>
<body>
  <h2>Head Script Example</h2>
  <p id="demo">Original Text</p>
  <button type="button" onclick="updateGreeting()">Click Me</button>
</body>
</html>

Scripts in <head>: Executed before the HTML document body has parsed. Suitable for configurations or background data pre-fetching.
Scripts before </body>: Recommended for DOM-manipulating scripts, ensuring HTML elements are fully parsed before scripts query or modify them.
External Script Files (<script src="script.js"></script>): Standard for production applications, maintaining clean separation of business logic from presentation.

5 Enterprise Perspective — Dynamic Web Applications

In contemporary software architecture, virtually 100% of commercial enterprise websites are not static handwritten HTML files. Instead, they are generated dynamically by Web Applications (built with frameworks in JavaScript/Node.js, Python, Java, or C#). These server applications query relational and distributed databases, enforce access control, and construct responsive HTML/CSS/JS payloads on the fly for client browsers.

Student Review & Practice Questions

Architecture: Differentiate between the distinct roles of HTML, CSS, and JavaScript in web applications.
CSS Box Model: If an element has a specified width of 300px, padding of 50px on all sides, border of 15px, and margin of 20px, what is the total horizontal layout footprint occupied by this element?
Script Placement: Why is it frequently recommended to place <script> tags that interact with DOM elements at the very bottom of the <body> element rather than inside <head>?
CSS Selectors: Contrast the intended use case of an ID selector (#header) versus a Class selector (.highlight).
